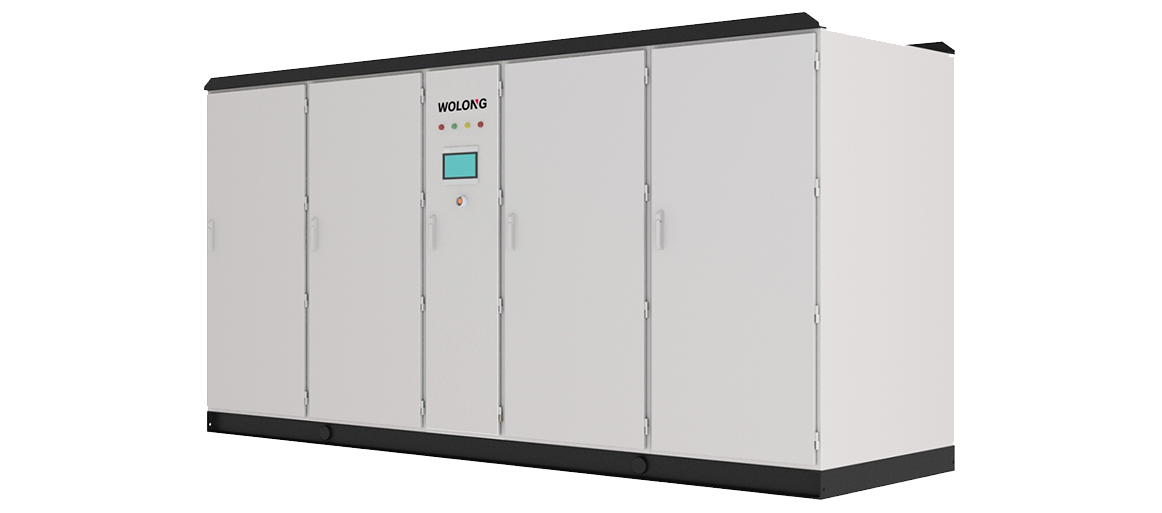

Using PWM rectifier and multiple DC-DC technologies, water cooling design. It is mainly suitable for hydrogen production in AC power grid or microgrid with photovoltaic and wind power as the main energy sources.
Product Advantages
Safe and reliable
Water cooling design, high protection level, with reactive power compensation, automatic identification.
Flexible configuration
Modular design, parallel expansion of power, Ethernet, CAN, RS485, Ethernet, analog and digital interfaces.
High-performance
High power factor, low harmonics on the network side and fast dynamic response.
Independent R&D
0-520V/820VDC output, covering 1250~15500kW, with equipment health management system.
Specification parameter
Type
WDHI1250~15500
Input voltage range
306V/530V
Total current distortion rate
< 3% (> 30% of rated capacity)
Power factor
>0.99
Maximum output power
1250kW~15500kW
Maximum output current
18900A
Output voltage range
0~520V, 0~820V
Output current accuracy
≤0.5% (maximum output current)
